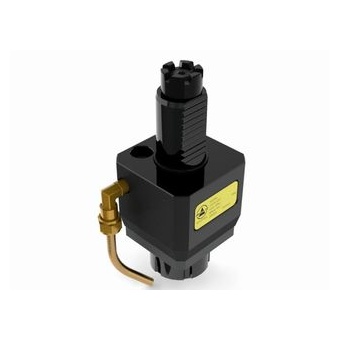

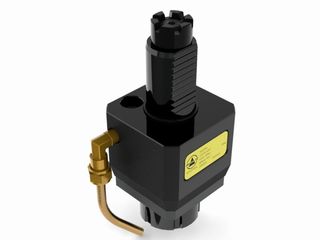

◎ VDI40-MT-ER40 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ R.P.M.：Max. 6,000 RPM

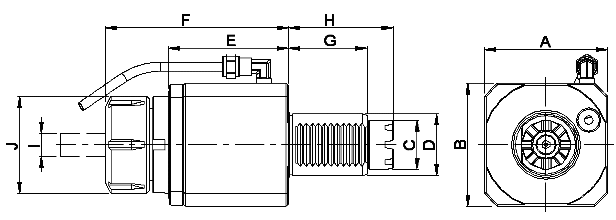

| Model No. | A | B | C | D | E | F | G | H | I | J | N.W. (KG) |
| THB-A06-40D | 80 | 80 | 32 | 40 | 78 | 119 | 51 | 68 | ER40(4~26) | 63 | 4.3 |
Unit:mm
