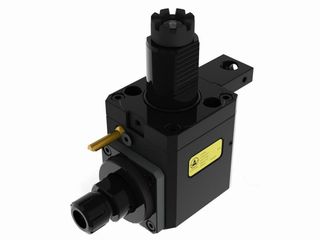

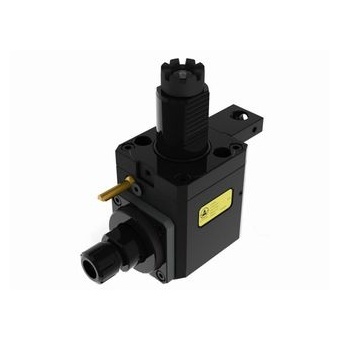

◎ VDI40-MT-TER20 Radial Tapping Collet Driven Tool Holder 65mm
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Gear Ratio：1：1
◎ R.P.M.：Max. 3,000 RPM

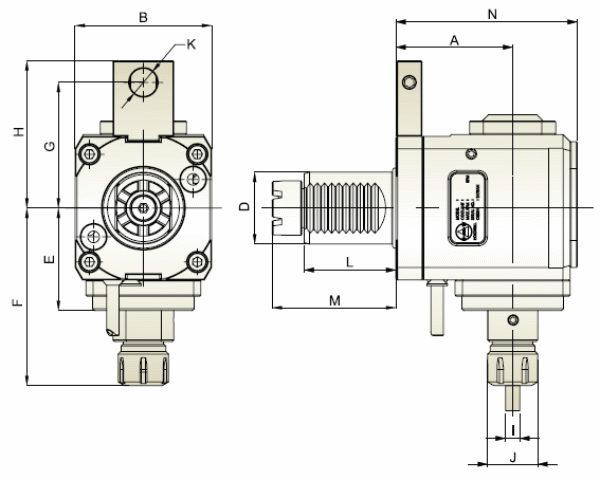

| Model No. | A | B | C | D | E | F | G | H | I | J | K | L | M | N | N.W. (KG) |
| THB-B15.65-40D | 65 | 76 | 32 | 40 | 57 | 99 | 56/63/70 | 68/75/82 | M3~M12 | 34 | 16 | 51 | 68 | 101 | 4.9 |
Unit:mm
