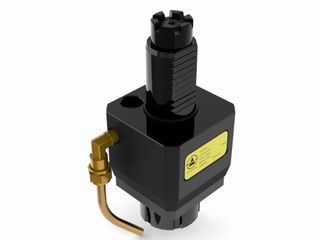

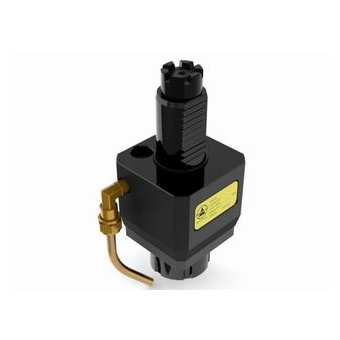

◎ VDI80-MT-ER50 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ R.P.M.：Max. 6,000 RPM

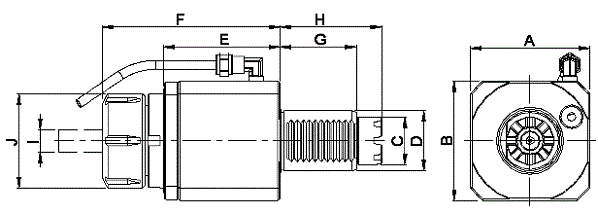

| Model No. | A | B | C | D | E | F | G | H | I | J | N.W.(KG) |
| THB-A07-80D | 158 | 158 | 57 | 80 | 130 | 183.5 | 111 | 130 | ER50(12~34) | 78 | 23 |
Unit:mm
